Hermetic Seal Adapters

Model No. UPJ23

Hermetic seal adapters designed to secure high vacuum.
Please contact us for you specific customization request.

【Related Contents】
👉 Click here to check line-up of Cryogenic products
👉 Click here to check Bias-Tee for Cryogenic

Model No.

V(m) V(f) - ISO10 - Comment
Upper connector lower connector   Flange form

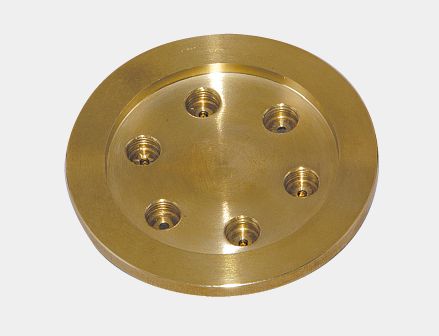

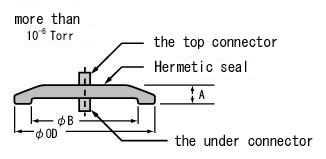

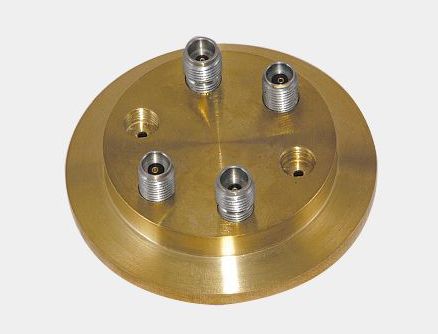

Clamping flange (ISO method)

ISO article ODmm Amm Bmm
ISO10 30 6 12.2
ISO16 30 6 17.2
ISO25 40 6 26.2
ISO40 55 6 41.2
ISO50 75 6 52.2
ISO80 114 11
ISO100 134 11

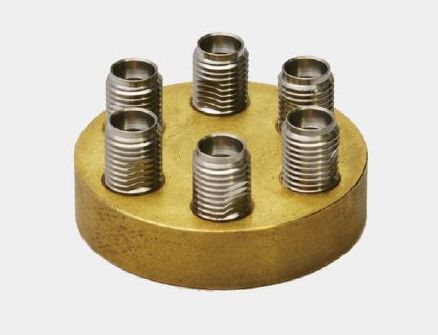

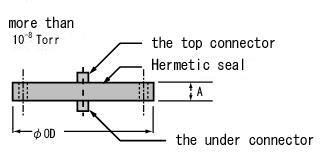

ICF flange

ICF article ODmm Amm
ICF34 34 7.6
ICF70 70 12.7
ICF114 114 17.4
ICF152 152 19.9
ICF203 203 22.3
ICF253 253 24.6
