KEYCOM provides solutions in the 300 GHz to 1 μHz frequency range (SHF/EHF/MW/UHF/VHF/ULF).
We undertake designing, manufacturing and measuring. Please feel free to contact us.

S-Parameter Method, Reflection and Transmission Mode,
Coaxial Tube and Waveguide Type
Relative permittivity, Dielectric loss tangent, Relative permeability (Dk, Df/ εr', tanδ/ μr', μr'')
Transmission attenuation, Reflection attenuation
Measurement equipment/system

Model No. DPS08
This system is suitable for a measurement of high loss materials like wave absorber.

This is a closed type measurement system for small size samples and high loss materials. It can measure Permeability(Df) simultaniously. Because of its principle, some space can be made between a sample and jig, so the accuracy may be down. But this method covers unique measurement frequency range.

For making designs of electric wave absorber for far field, we provide a software, with which you can simulate wave absorption ratio according to an actual measurement by one-click Single Layer Type / Multi-layer Type, Electric Wave Absorber, Return Loss Simulation Software Model No. EAS01.

※ As Dk and Df are interacting, when a measurement of them is done simultaniously, the accuracy may not high. If you need highly accurate measurement of Df, please select Magnetic Property Characteristics Measurement System Model No. PER01


Specifications

Items Details
Frequency 40 MHz-12.8 GHz*
*Measurement at frequency above 12.8GHz by this system is not recommended. Only when the sample size for the free space method cannot be prepared, please try this system.
εr' 2-200
Precision(repeatablity) : ± 3%(depend on network analyzer's performance)
Precision + accuracy(to true value) : ±10%(depend on measurement theory and design of positioning tool)
tan δ 0.01-20
Precision : ± 6%(depend on network analyzer's performance)
Precision + accuracy(to true value) : ±20%(depend on measurement theory and design of positioning tool)
μr' Precision : ± 3%(depend on network analyzer's performance)
Precision + accuracy(to true value) : ±10%
μr" Precision : ± 6%(depend on network analyzer's performance)
Precision + accuracy(to true value) : ±20%

Order information - Components and parts No.

Name Specifications Model No.

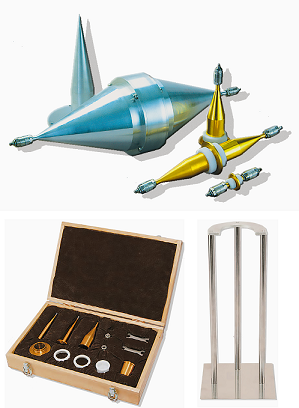

Reflection kits
Model No.
Transmission kits
Coaxial tube type
Measurement kit
For GPC7 (Frequency:500MHz-12GHz, Measurable Frequency: 500MHz-18GHz)
Specimen sizes : Outside diameter 6.93 ~ 6.96mmφ, Inside diameter 3.06 ~ 3.10φ
CM-7 CM-7TB+R
For 40D (Measurable Frequency: 40MHz-3GHz)
Specimen size: Outside diameter approx.40mmφ
CM-40 CM-40TB+R
Coaxial tube type Measurement kit

*Not recommended for material constant calculations.
*This is supposed to be used to measure transmission attenuation and reflection attenuation
For 152D (Measurable Frequency: 12MHz-800MHz)
Specimen sizes : 151.90 ~ 151.95mmφ
  CM-152TB+R
Wave guide type WR770 (Frequency 0.96-1.4GHz)
specimen sizes:195.5x97.7mm
  CM-770TB+R
WR430 (Frequency 1.7-2.6GHz)
specimen sizes:109.2x54.6mm
  CM-430TB+R
WR284 (Frequency 2.6-3.9GHz)
specimen sizes:72.1x34.0mm
  CM-284TB+R
WR187 (Frequency 3.94-5.9GHz)
specimen sizes:47.5×22.1mm
  CM-187TB+R
WR137 (Frequency 5.4-8.1GHz)
specimen sizes:34.82×15.76mm
  CM-137TB+R
WR90 (Frequency 8.2-12.4GHz)
specimen sizes:22.83×10.13mm
  CM-90TB+R
Wave guide type
(Not recommended)
WR62 (Frequency 12-18GHz)
specimen sizes:15.76x7.86mm
  CM-62TB+R
WR42 (Frequency 18-26.5GHz)
specimen sizes:10.63x4.28mm
  CM-42TB+R
WR28 (Frequency 26.5-40GHz)
specimen sizes:7.08x3.52mm
  CM-28TB+R
WR19 (Frequency 40-60GHz)
specimen sizes:4.74x2.35mm
  CM-19TB+R
WR12 (Frequency 61-90GHz)
specimen sizes:3.06x1.51mm
  CM-12TB+R
WR10 (Frequency 90-110GHz)
specimen sizes:2.00×1.98mm
  CM-10TB+R
Option: Add shield effect measurement kit for 500M-18GHz (ASTM D4935, ASTM ES7)
  OP-S-GPC7
Option: Manual & software for measuring shielding effectiveness   DMP-DPS08SEM01-OP
Fixing equipment for Coaxial tube type for GPC7 03KO
Sample punching device for GPC7 CGPC7
Calculation
software (Windows)

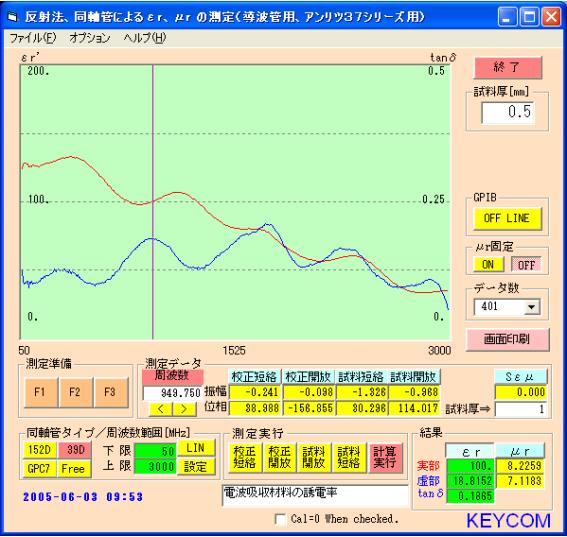

Reflection mode with coaxial tube type DMP-01
Transmission mode with coaxial tube/ wave guide type   DMP-07
Sigle-layer / multi-layer type Return loss simulation program for
electromagnetic absorber
Can estimate the return loss of absorption materials with a single layer of any thickness from the measured complex εr and comples μr. DMP-70
coaxial cable for measurement 1 cable for reflection mode
2 cables for transmission mode
CM06D-APC2.9(m)
APC2.9(m)-1000
GPIB cable   GP-01
Networkanalyzer Available upon request .
Please request the model of your choice.
VNA
Windows PC (installation and usage instruction service) CP

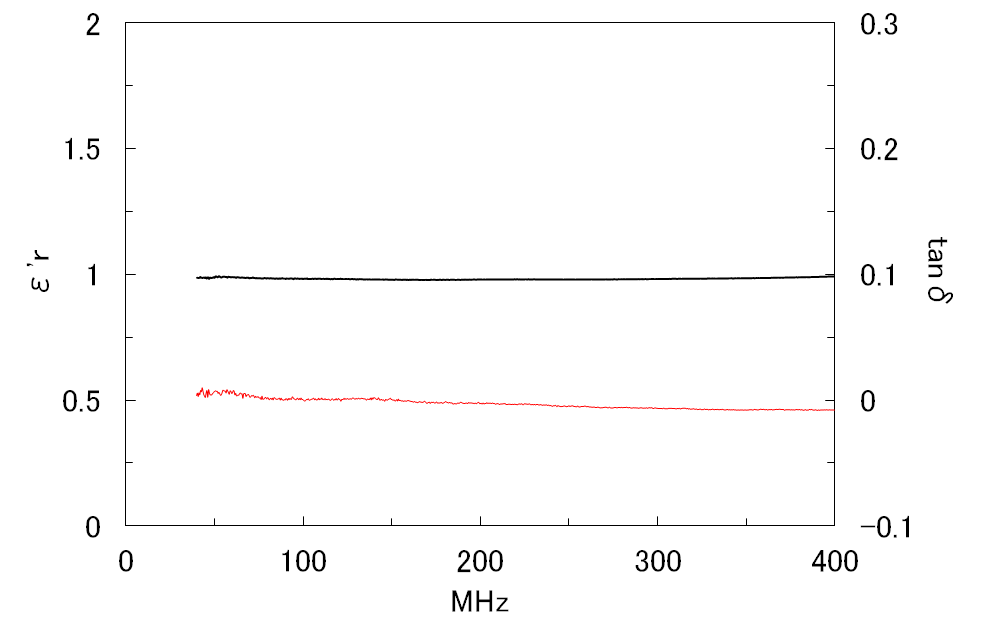

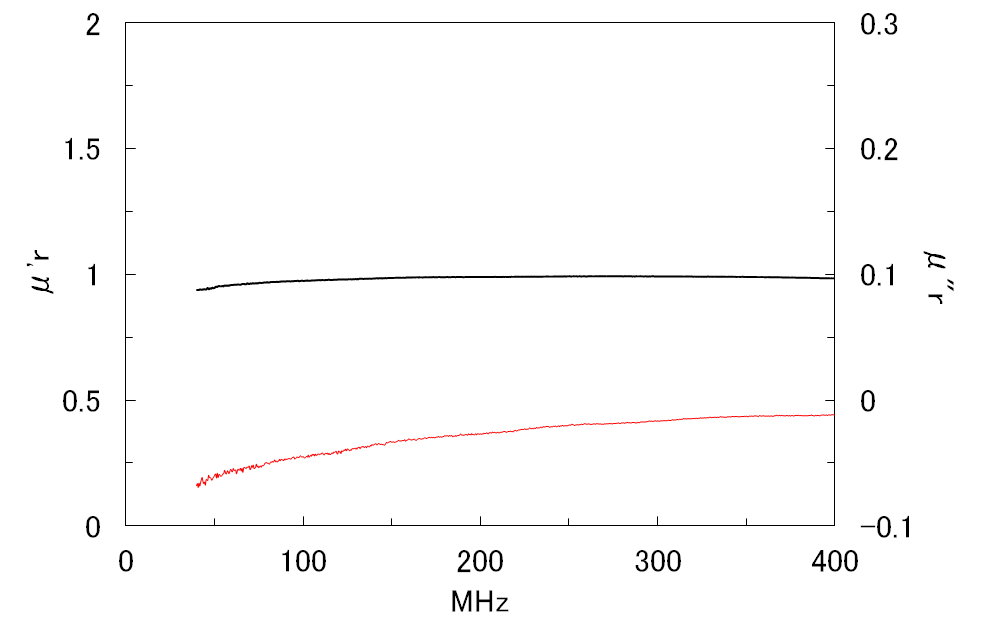

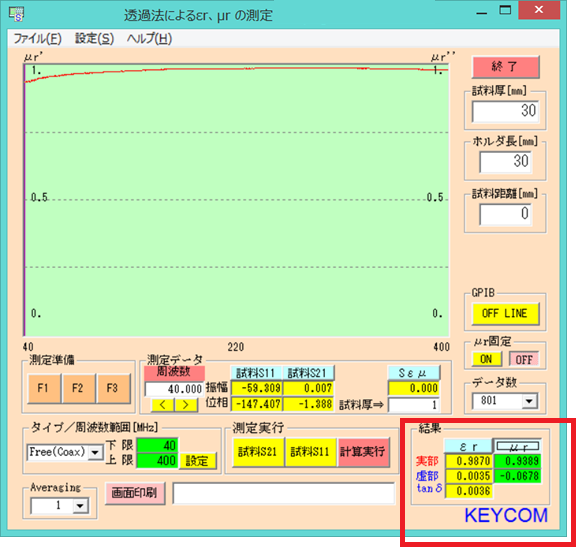

Data example (English available)

Measurement Jig: CM-40TB+R
Measurement Frequency: 40MHz
Measurement Sample: Air
DK: 0.9870≒1
Df: 0.0036≒0
μ′r: 0.9389≒1
μ"r: -0.0678≒0

Packing Size for Shipping

Measurement Kit Approx.size and Weight
(subject to change without notice)
CM-7TB+R, 1set W380×D320×H280mm 3kg
