RCS Simulation Software (ACES)

Model No. SFW03

【Related Contents】
👉Products Line-up of RCS measurement system
👉For developing Radar(Microwave, Millimeter wave) in general : Please check here
👉For developing Automotive Radar : Please check here

Adoption of physical optical theory of diffraction (PTD)

Highly accurate, fast processing PTD method is most ideal for RCS simulation of automobiles, ships, or human bodies.
Because electromagnetic wave dispersion is invisible to the naked eye, the simulation technology has always been the focus in the field. Many techniques such as numerical solutions including the method of moments, physical optics approximation (PO), and the hybrid method that combines the two are being practiced for dispersion evaluation of electromagnetic wave, and among many others, KEYCOM’s PTD-adopted software SFW03, a revision of PO, is highly accurate, fast processing and suitable for large models.

Typical accuracy and calculation time of mathematical simulations
	RCS accuracy (A)	Calculation time (T)	Remarks
Actual Measurement	A		Most accurate, measurement environment dependent
Numerical solution	0.9A	T	Highly accurate but enormous calculation required
Hybrid method	0.5-0.8A	0.1T-0.3T	Most practical, but combination of different methods could cause errors.
Physical optics approximation(PO)	0.3A-0.5A	0.03T	Simple, quick and suitable for large samples.
Physical Theory of Dispersion (PTD)	0.5A-0.7A	0.05T-0.2T	Highly accurate, quick and suitable for large samples.

Features

Substantial GUIs.
Entirely Matlab-based software.
Monostatic and bistatic mode are available.
Positive polarization / Cross polarization processing.
Approximate evaluation of wide areas such as topography and sea surface.
Shading and multiple incidence, reflection, diffraction processing.
Compilation of database for material composition (pallet color).
Supports N (arbitrary constant)-layered materials.
Supports diffractive electromagnetic flow at the edge.
Optimum segmentation of object.
RCS calculation library of standard shapes.
RCS calculation for combined standard shapes.
Specific interfaces for various data classification.
Expansion capability for dispersion in cavity and multiplex transmitted wave.
Expansion capability for Inverse Synthetic Aperture Radar processing.
Customizable upon request.

Measurement Example

※　RCS of automobile, truck, and human body (whole circumference, 24GHz/76.5GHz)

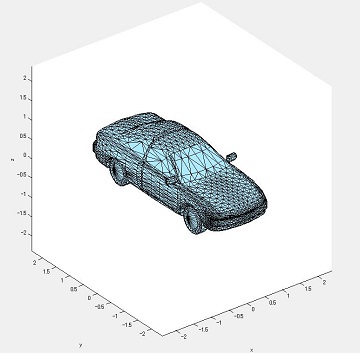

Automobile

Parameters

Object: Automobile
Calculation mode: Monostatic RCS
Angle: 0 ~ 360° (front at 270°)
Dimensions: L 4.7 x W 1.9 x H 1.5 (m)
Frequency: 24GHz, 76.5GHz

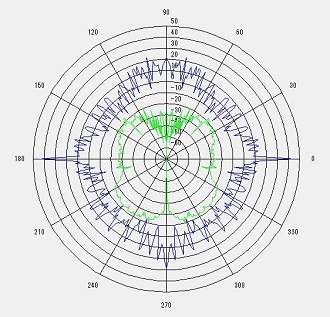

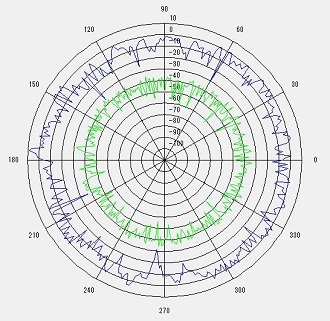

Results　　Blue: Positive polarization　Green: Cross polarization

24GHz	76.5GHz

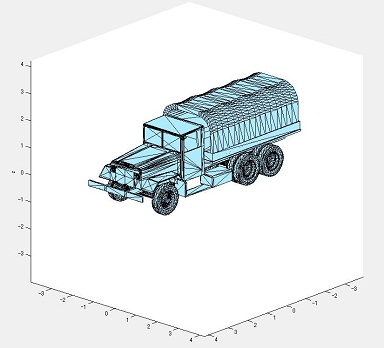

Truck

Parameters

Object: Truck
Calculation mode: Monostatic RCS
Angle: 0 ~ 360° (front at 270°)
Dimensions: L 8.2 x W 2.5 x H 3.0 (m)
Frequency: 24GHz, 76.5GHz

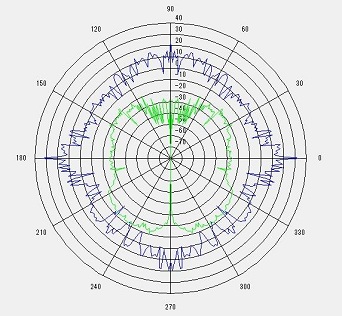

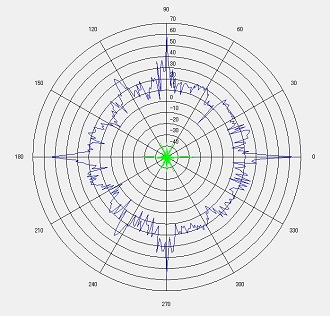

Results　　Blue: Positive polarization　Green: Cross polarization

24GHz	76.5GHz

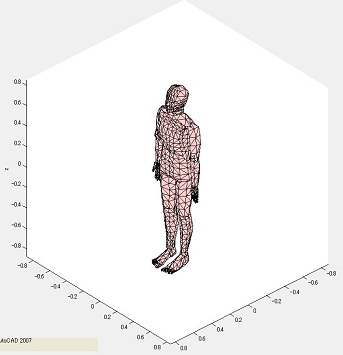

Human body

Parameters

Object: Human body
Calculation mode: Monostatic RCS
Angle: 0 ~ 360° (front at 270°)
Hight: 1.7 (m)
Frequency: 24GHz, 76.5GHz

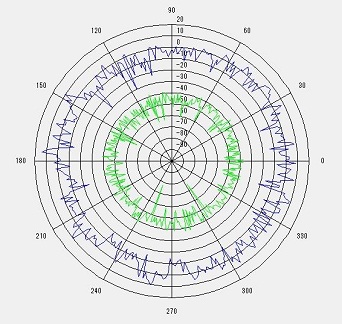

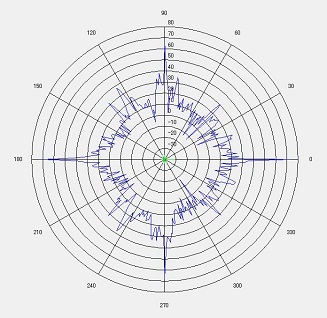

Results　　Blue: Positive polarization　Green: Cross polarization

24GHz	76.5GHz
