Waveguide type
Effect of shield measurement system
(1.0GHz~90.0GHz)

Catalog No. sem02002011015-01

This system can be measured the shield effect of the specimen at wide range.
It is 100dB dynamic range at 1GHz~40GHz,and 70dB dynamic range at 40GHz~90GHz.
It is waveguide structure, an incidence angle of the plane wave to the specimen changes every frequency.
Therefore, you can measure relations between an incidence angle to the specimen of the plane wave and effect of shield.

Model No.

Name	Model No.	Range of frequency (GHz)	Inside diameter size(mm)	Specimen size
Main body	SEWR-770	0.96-1.6	195.6 × 97.8	Width and depth are 100mm larger than inside diameter size
	SEWR-430	1.6-2.60	109.2 × 54.6
	SEWR-284	2.60-3.95	72.1 × 34.0
	SEWR-187	3.95-5.85	47.6 × 22.1
	SEWR-159	4.90-7.05	40.4 × 20.2
	SEWR-137	5.85-8.2	34.9 × 15.8
	SEWR-90	8.2-12.4	22.9 × 10.2
	SEWR-62	12.4-18	15.8 × 7.9
	SEWR-42	18-26.5	10.7 × 4.3
	SEWR-28	26.5-40	7.1 × 3.6
	SEWR-19	40-60	4.8 × 2.3
	SEWR-12	60-90	3.1 × 1.6
Measurement software	DMP-12 (1-40GHz)
Measurement software	DMP-13 (40-90GHz)
Scalar network analyzer
Micro wave / millimeter wave cable 1mx2set
GPIB cable		GP-01

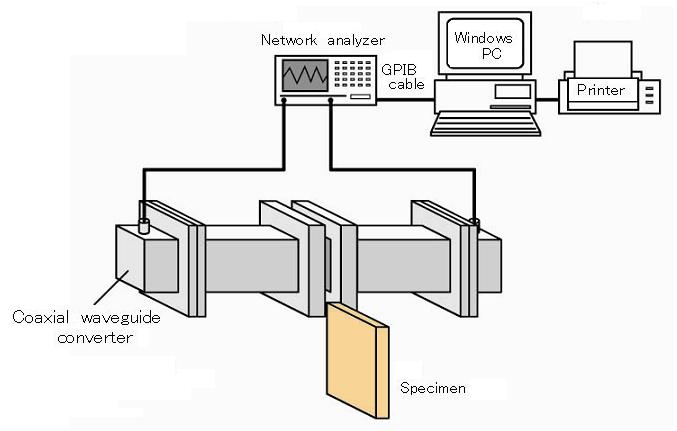

Configurations
