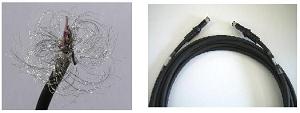

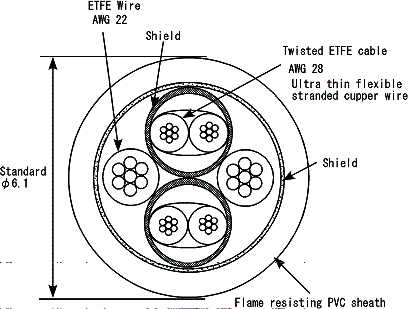

It is a robot cable of the IEEE-1394 type.
When it is hope, it assembles it.
＊ A long bending life.
＊ After 5 million times of a bending test that bends a 180 degree back and forth at a bending radius of 30 mm.
.- No increase of conductor resistance can be recognized.
- No scratches can be found.
- No scratches and tears of conductors and insulators can be recognized at the disassembled cables.
* No dust from the cable sheath or terminals can be recognized.
- It is best suitable for clean room movable operation.
- Press-in terminals can be used.
| R1D0302-1SV | 1 bundle(100m) |
| Voltage rating | 300V suitable |
| Use maximum temperature | 105 degree |
| Burning resistance | UL VW-1 suitable |
| Winding longevity ( Reference value ) | After 5 million times of a bending test that bends a 180 degree back and forth at a bending radius of 30 mm, The abnormality was not recognized. |
 |
