KEYCOM provides solutions in the 300 GHz to 1 μHz frequency range (SHF/EHF/MW/UHF/VHF/ULF).
We undertake designing, manufacturing and measuring. Please feel free to contact us.

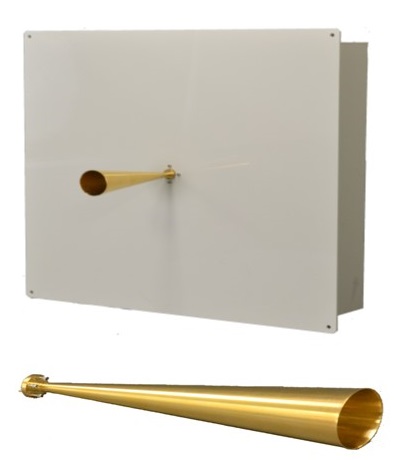

Polarization Free Target Simulator for Collision Avoidance Radar

Model No. RAT15-L2←Please provide the length of L2 (Unit : m)
This is the delay line with no change propagation loss in any plane of polarization



Features

  • Free of polarization plane.
  • Low loss.
  • If you frequency change , loss doesn’t change.
  • The electric power isn’t used.

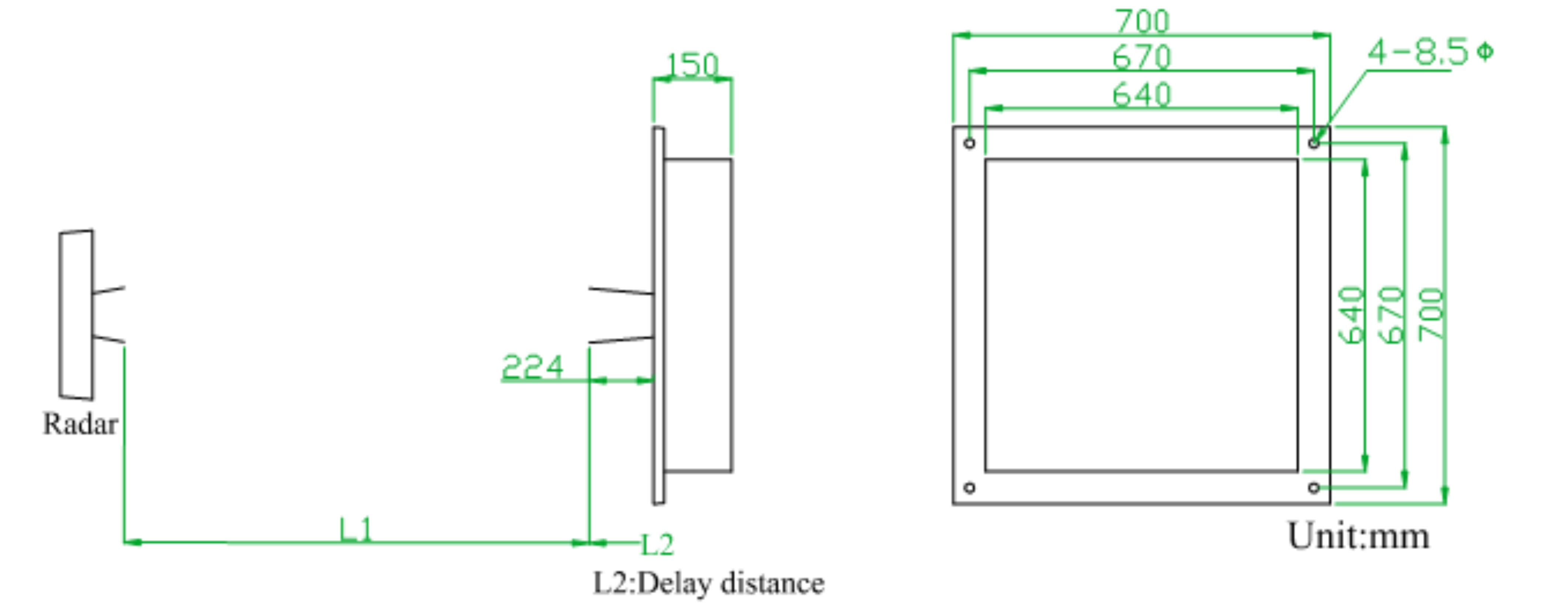

Configuration

Specifications

Frequency:76~81GHz
Gain of Horn Antenna : 30dBi
L1: 1.5~5 m
L2: 1~20 m

Order information

RAT15-L2 (unit : m) ←Please provide the propagation delay time of round trip

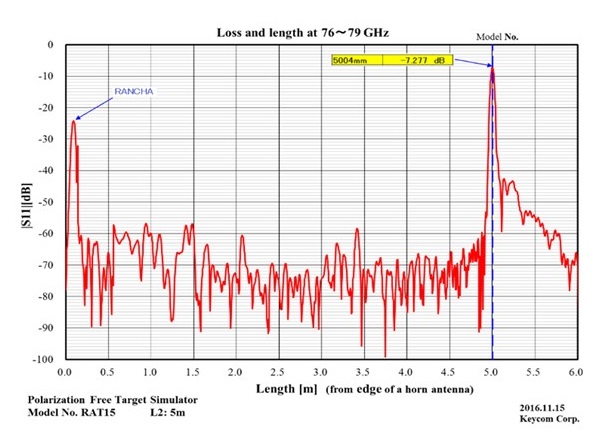

Example data

L2 : 5.00 m , Round trip of a delay line : 7.2 dB
