Target Simulator for Collision Avoidance Radar (short range)
Passive Radar Test System(Passive RTS)
- 24GHz, 76.5GHz, 79GHz

Model No. RAT09

KEYCOM provides a passive RTS with a very little frequency dependency in
delay time and less insertion loss than a metal waveguide.
Its distinguished features were made possible by applying a dielectric waveguide for
its delay line to put its transmission in TEM mode.
Available for 79GHZ, 76.5GHZ, and 24GHz.

Features

Because the delay line is dielectric,
*Transmission is in TEM mode, and it shows little frequency dependency in delay time.
*Insertion loss is smaller than a metal waveguide, and thus desired RCS can be obtained even with a low gain antenna.
Therefore, the antenna can be smaller than metal waveguide type, resulting in reduction of unnecessary reflection from the antenna.
*Very little unnecessary reflection from the delay line.
Also…
*Very few failures because of its solid body without moving parts.
*Suitable for assembly lines for millimeter radar-equipped automobiles because no operation is necessary.

Model No.

79GHz PRES-79G-20m-RCS-03
PRES-79G-20m-RCS-03-A*
76.5GHz PRES-76.5G-8.0m-RCS-03
24GHz PRES-24.15G-8.0m-RCS-03
*-A(Option): w/ flange for power meter installation

Specifications

79GHz

Frequency 79GHz±2GHz
Delay distance Xm    X:0.5~20
Delay line Dielectric waveguide
Target simulation method Delay line end short-circuited
Area of RCS 0.4m^2 @79GHz Conditions: spatial distance 2m, delay distance in delay line 8m, frequency 79GHz
Unnecessary reflection level Below -40dB relative to reflection from short-circuited end Condition: between 5m before the short-circuited end and the short-circuited end
Dimensions of delay line housing space Less than Φ300mm×300mm(H)
Antenna gain 30dBi @76.5GHz
Antenna polarization 0°, 45° (selectable, right or left)
Antenna boresight shift Less than 2°

76.5GHz

Frequency 76.5GHz±1GHz
Delay distance Xm    X:0.5~20
Delay line Dielectric waveguide
Target simulation method Delay line end short-circuited
Area of RCS 0.4m^2 @76.5GHz Conditions: spatial distance 2m, delay distance in delay line 8m, frequency 76.5GHz
Unnecessary reflection level Below -40dB relative to reflection from short-circuited end Condition: between 5m before the short-circuited end and the short-circuited end
Dimensions of delay line housing space Less than Φ300mm×300mm(H)
Antenna gain 30dBi @76.5GHz
Antenna polarization 0°, 45° (selectable, right or left)
Antenna boresight shift Less than 2°

24GHz

Frequency 23.5GHz - 29.5GHz
Delay distance Xm    X:0.5~20
Delay line Dielectric waveguide
Target simulation method Delay line end short-circuited
Area of RCS 0.4m^2 @24.15GHz Conditions: spatial distance 2m, delay distance in delay line 8m, frequency 24.15GHz
Unnecessary reflection level Below -40dB relative to reflection from short-circuited end Condition: between 5m before the short-circuited end and the short-circuited end
Dimensions of delay line housing space Φ800mm×410mm(W)
Antenna gain 19dBi @24.15GHz
Antenna polarization 0°, 45° (selectable, right or left)
Antenna boresight shift Less than 1°

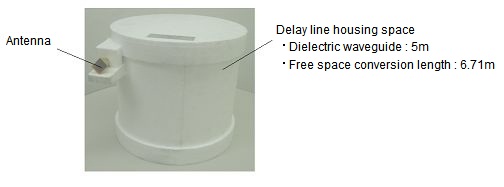

Configuration



Actual measurement data

Frequency range 60-66GHz, vector network analyzer (excluding antenna)

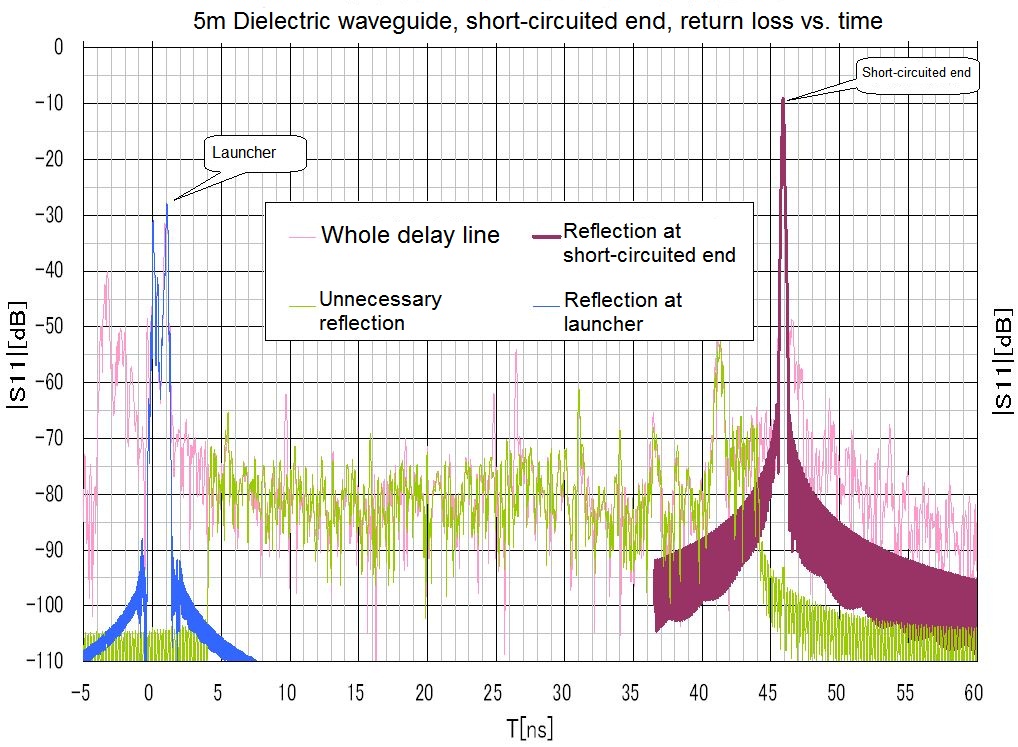

Time response

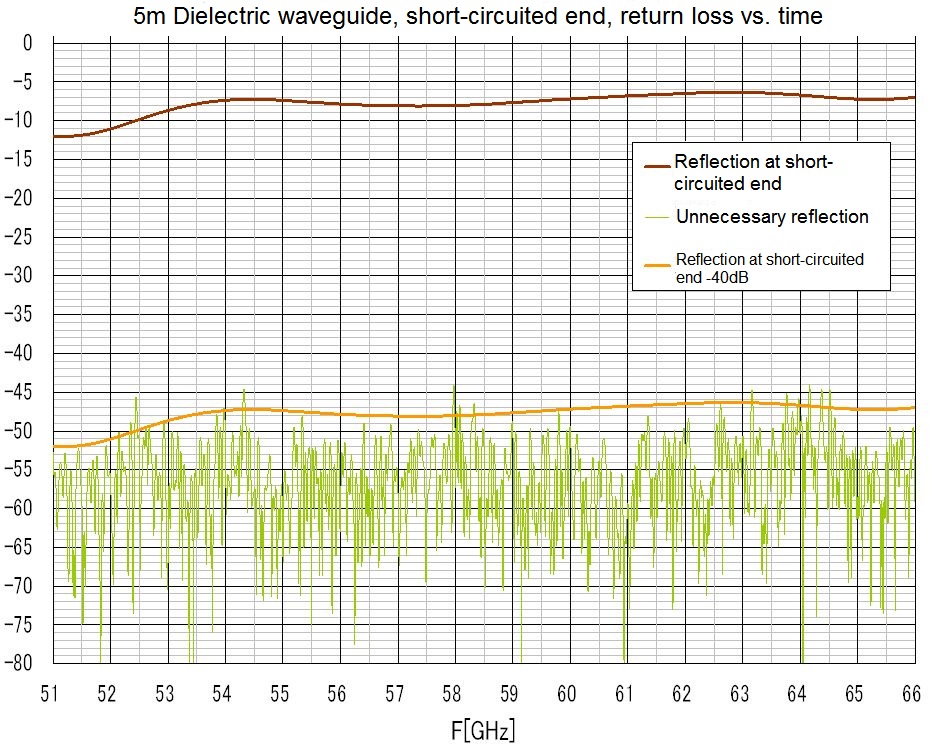

Frequency response

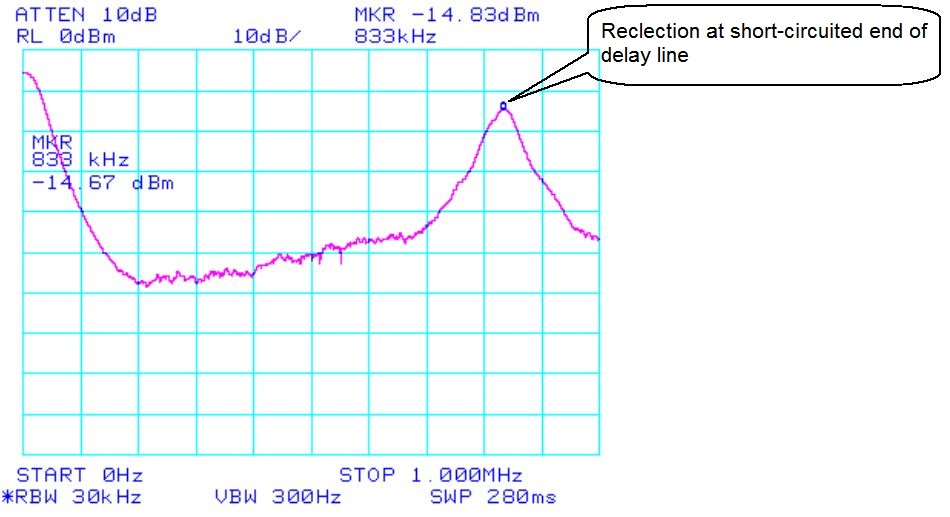

Frequency range 60-66GHz, FMCW radar



Please consult with your KEYCOM representative for specifications of your request.
