Evaluation (measurement) system for close-range situation-aware radars in cars

Catalog No.rat05

Outline

An evaluation (measurement) system for impulse radars operating at 24 GHz or 76 GHz.
There are radars which warn the driver of the close proximity of cars when driving fast or changing lanes.
Radars used in such situations emit exceedingly weak electromagnetic waves over a wide space.

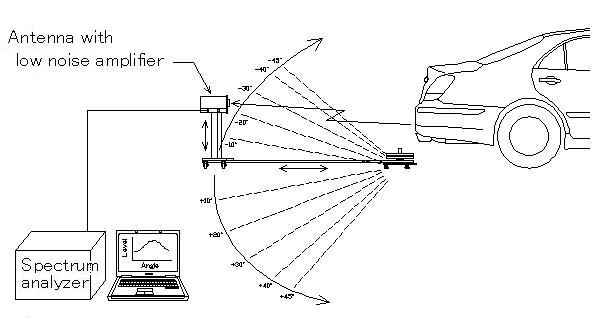

It performs "the radar evaluation" of these radars and "the space pattern measurement of the electric wave at the time of the vehicle deployment".

Configurations

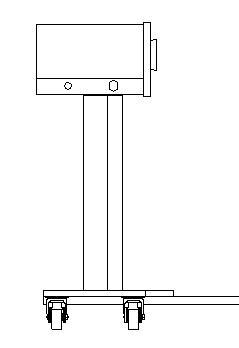

Antenna fixation stand

Model No.

AS-02	Antenna fixation stand	It is possible to move right and left around the fulcrum. (manual operation) ・The distance is changeable.:2m~3.5m ・Height is changeable. :0.5m~0.8m

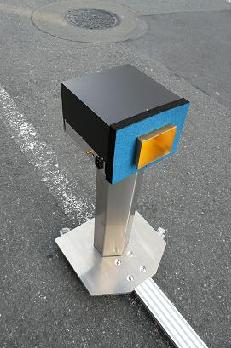

RE-24-01	For 24GHz, Antenna with low noise amplifier	Frequency : 23~25GHz ・Antenna gain : 23GHz ・Low noise amplifier : ＮF:3.5dB以下　　　　　　　　　　　Gain : 60dB　Typ ・Connector : APC2.9(f) ・Power supply : 100V AC　　less than 2A
RE-76-01	For 76GHz, Antenna with low noise amplifier	Frequency : 75~77GHz ・Method : Down converter method ・Antenna gain : 23GHz ・Low noise amplifier : ＮF: less than 6dB 　　　　　　　　　　　Gain : 40dB　Typ ・Output : 100MHz~2GHz ・Connector : SMA(f) ・Power supply : 100V AC　　less than 2A
CM06D-APC2.9(f)APC2.9(f)-3000 (3m)	For DC~40GHz, Flexible coaxial cable assembly
CM03A-SMA(f)SMA(f)f-3000 (3m) ( For 76GHz system )	For DC~18.5GHz, Flexible coaxial cable assembly
DMP-121	Graphing software
SPEC-30G-01	For ~30GHz, Spectrum analyzer
SPEC-3G-01	For ~ 3GHz, Spectrum analyzer
Windows PC ( with printer )	It is possible to buy it by matching it. Please inform us of details of your demand.
