FMCW Meteorological Radar Aerial

Model No. PBR72

Characteristics

1.The reflective mirror attached to the flat frame ensures that the directionality of reception and transmission coincide.
2.The transmission and reception antennas are separated, ensuring that the received and the transmitted signals are isolated from each other.
3.Snow does not lie on the radome because it is slanted.
4.The radome can be easily removed.

Specifications

Frequency 35GHz
Beam width  ∠0.6
Gain About 46dBi
Diameter 120cm

Configurations

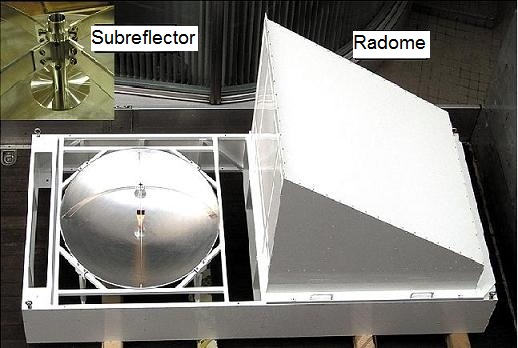

Millimeter wave cassegrain antenna (Diameter:120cm)

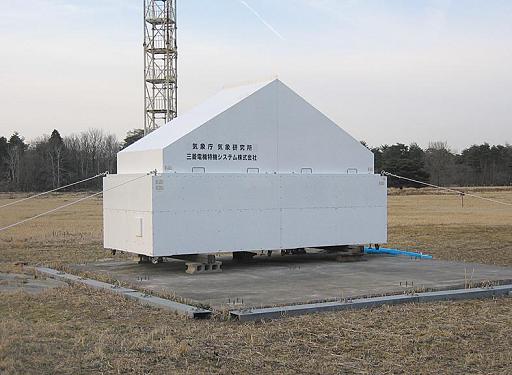

System installed in wide open space (provided by Mitsubishi Electric Tokki Systems)

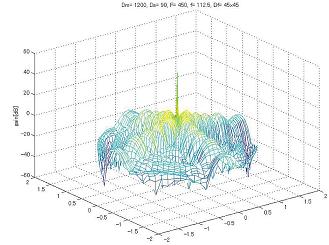

Simulation for antenna pattern profile

Millimeter wave cassegrain antenna
