Straight-Type Metal Waveguide Assembly with Flange

Model No. MWG10

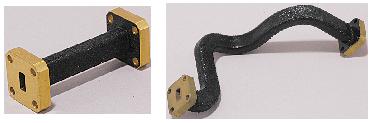

MWG10 is a straight type, rectangular metal waveguide.
It is provided in the standard length unless otherwise specified.
*Please let us know your desired demensions when bending processing is required.

【Related Contents】
👉 Products Line-up of Milliler wave & Microwave Components / Devices

Model No. and specifications

Model No, (Please see below)

Lmm (when specified)

*Please consult with KEYCOM representative for your specific requirement.

Frequency (GHz)			Waveguide standard		Flange																Lmm	Insertion loss dB/m		Theoretical value/copper
Frequency (GHz)			Waveguide standard		Type (angular)			Model no.			Type (circular)			Model no.			Type (FXR)	Model no.			Lmm	Insertion loss dB/m		Theoretical value/copper
8.2	-	12.4	WR-	90	UG	39	/U	S	90	S												0.16	~	0.1
12.4		18		62		419			62													0.23		0.17
18		26.5		42		595			42		UG	425	/U	S	42	R					50.80	0.50		0.31
26.5		40		28		599			28			381			28							0.78		0.5
33		50		22								383			22							1.10		0.7
40		60		19								383			19							1.5		0.9
50		75		15								385			15							2.0		1.3
60		90		12								387			12							3.3		1.8
75		110		10											10							3.6		2.8
90		140		8											8		FXR	S	8	F	25.40	5.0		3.2
110		170		6											6				6			7.0		4.5
140		220		5											5				5			9		6
170		260		4											4				4			13		9
220		325		3											3				3			18		12

Straight-Type Metal Waveguide Assembly with Flange

Model No. and specifications

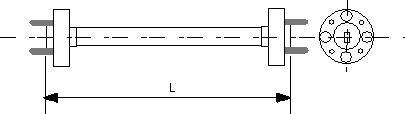

External view
