Tunable short (Metallic waveguide)

Model No. MTF03
It is the tunable short for a rectangular waveguide.
There is no instability by defective noncontact because the short side is a noncontact type.

Model No.

Frequency (GHz) Waveguide standard Flange type (rectangule) Flange type (circle)
    Model No. Model No.
18-26.5 WR-42 UG595/U UG425/U
    TS42S TS42R
26.5-40 WR-28 599/U 381/U
    TS28S TS28R
33-50 WR-22   383/U
      TS22R
40-60 WR-19   383/U
      TS19R
50-75 WR-15   385/U
      TS15R
60-90 WR-12   387/U
      TS12R
75-110 WR-10   387/U
      TS10R
90-140 WR-8   387/U
      TS8R
110-170 WR-6   387/U
      TS8R
140-220 WR-5   387/U
      TS5R
170-260 WR-4   387/U
      TS4R
220-325 WR-3   387/U
      TS3R

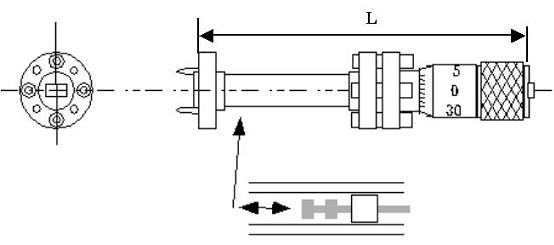

Configurations
