Model No.
| Model No. | Rise Time (10-90%) | Insertion Loss dB (max.) | Average Power W (max.) |
| RTF-50PsA | 50ps | 0.7 | 1 |
| RTF-100PsA | 100ps | ||
| RTF-200PsA | 200ps | ||
| RTF-500PsA | 500ps | ||
| RTF-1nsA | 1ns | ||
| RTF-2nsA | 2ns | ||
| RTF-5nsA | 5ns | ||
| RTF-10nsA | 10ns |

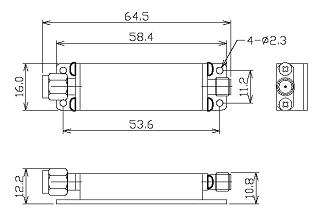

Configurations
 |
 |
HOME / Products for Pulse Technology / Low-pass and rise time filters (pulse filters) / Low-pass and rise time filters (pulse filters)
Low-pass and rise time filters (pulse filters)
Catalog No. flt10
It is a filter that slows down standing up and the standing down time of the pulse.
Also, by matching the wave impedance in the outer band, and to avoid overshoot.
It is a characteristic the same as for the input as for which.
