Resonance Method Strip Line Type
Dielectric Constant and Dielectric Loss Tangent(Dk/Df)
Measurement System for Sheet
[Films, Sheet, Dk, Df, εr', tanδ]

Model No. DPS50
Capable of measuring εr / tanδ of a thickness direction ! Suitable for measurering circuit materials !!

DPS50 is a resonance method, strip line type dielectric constant and dielectric loss tangent measurement system optimized for sheet materials with dielectric constant of approximately 1 to 40 and relatively small dielectric loss in the frequency range of 800 MHz to 14GHz.

This system is compliant with the ASTMD3380 standard method of test for permittivity (dielectric constant) and dissipation factor of plastic-based Microwave circuit substrates, and IPC-TM-650 2. 5. 5. 5. 1 strip line test for complex relative permittivity of circuit board materials to 14GHz.

The measurement technique was announced at 2008 IEEE I2MTC.
IEEE 2008　I2MTC Victoria Canada, paper#1569085274,Tue_20 12-15 May 2008

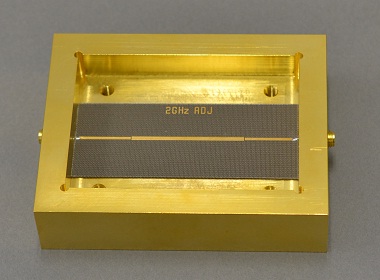

For Adjustment

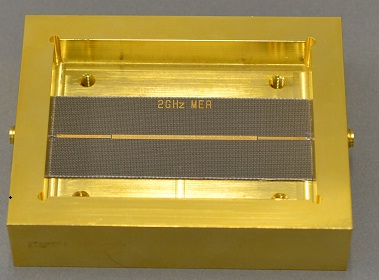

For Measurement

Features

Place a sample on 2 different PCB resonators and overlay the metal lid on each to apply pressure, and take measurements twice.
This method will

  1. eliminate the fringing effect
  2. eliminate conductor loss of resonator
  3. eliminate the necessity for creating resonance pattern
  4. generate an electric field perpendicular to the sample sheet

Conforming Standards

ASTMD3380, IPC-TM-650 2. 5. 5. 5. 1

Measurable Sample(Example)

Dielectric materials for printed circuit boards.

Electric Field Direction

Perpendicular to the ground, in the direction of the sample thickness
⇒ Combined with other planar measurement methods, it is possible to confirm anisotropy in the thickness and planar directions

Specifications

Items Details
Frequency 800MHz~14GHz
Resonance frequency - without sample. When you put a sample on the jig, the resonance frequency will become lower.
Dielectric Constant (εr') 1.05-40　Accuracy ± 5%
Dielectric loss tangent (tanδ) 0.001-0.05　Accuracy ± 10%
Sapmle size

*Size of specimen
30mm x 150mm (900MHz)
30mm x 30mm (15GHz)
*Sheet thickness
50μm~2mm

Order information : Model No.

Model no. Description Frequency Range Sample size
FS-03 Pressure type fixture ( w/ pressure sensor for constant load, digital indicator)
R-0.9B Resonator (measurement+calibration+fixture)
*Supprots up to 14GHz
*Resonance frequency without sample. Resonance frequency is lower with sample
900MHz 30mm×150mm
R-1B 1GHz 30mm×150mm
R-2B 2GHz 30mm×80mm
R-5B 5GHz 30mm×30mm
R-10B 10GHz 30mm×30mm
R-15B 15GHz 30mm×30mm

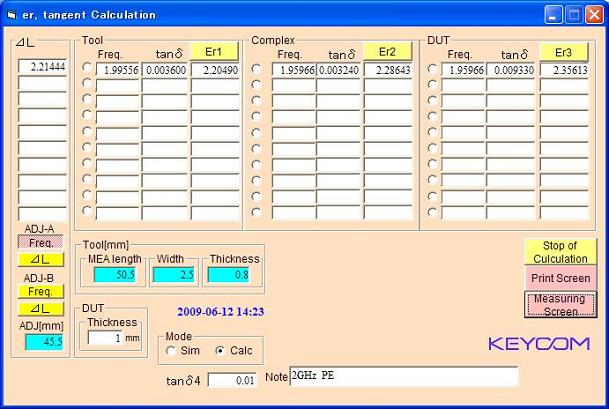

DMP-61M Software, resonance method strip line type for Windows
(Complex dielectric conversion software)
CM06D-APC2.9(m)APC2.9(m)-500:
2 pieces required 		Coaxial cable
VNA Vector network analyzer When you have a request, we will propose a suitable model.
CP Windows　PC (w/ printer) Available upon your request.
GP-01 GPIB interface

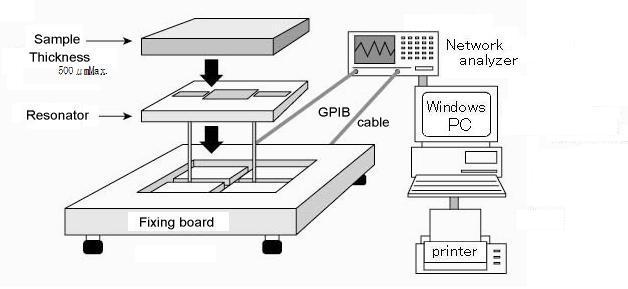

Configurations



Test example (English version available)
