Resonance method micro strip line type
for sheet and ultra thin sheet
dielectric constant and dielectric loss tangent measurement system

Catalog No. dps01002000313-08

This is a test system for dielectric constant and dielectric loss tangent where the material dielectric loss is relatively small in the vicinity of 1 to 20 in the frequency range of 800 MHz to 14GHz.
We follow the ASTMD3380-75 Standard method of Test for Permittivity (Dielectric Constant) and Dissipation Factor of Plastic-Based Microwave Circuit Substrates and IPC-L-125 Specification for Plastic Substrates, Clad or Unclad, for High Speed / High Frequency Interconnections.

・H.Suzuki, 　"Microwave measurment of complex permittivity of thick plate by placing the material under test on a microstripline resonator "　Eu　Mc 21-4, 2006, Manchester, uk

Specifications

Frequency 800MHz~14GHz
Dielectric Constant (εr') 1.05-20　Accuracy ±7%
Dielectric loss tangent (tanδ) 0.001-0.05
Sheet thickness 10μm~0.5mm, 0.5~50mm


Model No.

Name Specifications Model No. Sample Dimension
Fixture Base Board 250mm (Length) × 130mm (width) × 50mm (Height) FS-01
Resonator Frequency Range　900MHz　 R-0.9A 50×150mm
Frequency Range　2GHz　 R-2A 30×80mm
Frequency Range　5GHz R-5A 10×30mm
Frequency Range　10GHz R-10A 10×20mm

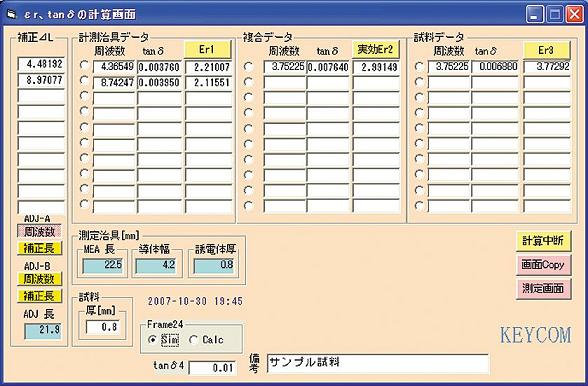

Resonance Program
(Composite dielectric material translation software, εr, and tanδ calculation software) 		DMP-41
Vector Network Analyzer When it is not possession, We will arrange.
Please inform us about the model for which you hope.
Coaxial cable for measurement   CM06D-APC2.9(m)APC2.9(m)-500 : 2set
Personal computer with Window, Printer
GPIB Cables (0.5m) 2set   GP-01

Maximum 14 GHz can be achieved
*Resonance frequency is without sample. When sample is laid Resonance frequency becomes lower.
*Calibration Resonator comes as a set with the testing resonator.

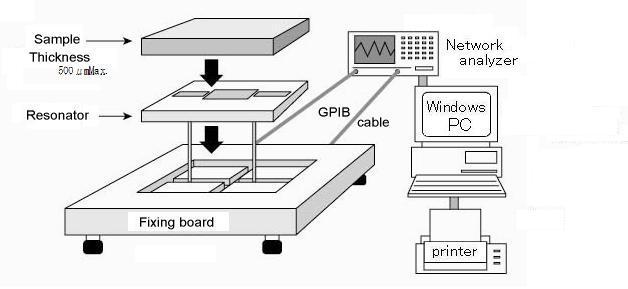

Configurations




Test example (English version available)
