Electric wave azimuth / Elevation record system

Model No. ANT12

This system is to record electric wave of the azimuth and each elevation automatically.
It rotates on the polarized electromagnetic radiation side manually.

【Related contents】
👉 Products Line-up of Antenna Measurement/Evaluation System : Please check here
👉 For developing Antenna & Antenna system : Please check here

Model No. RS-03

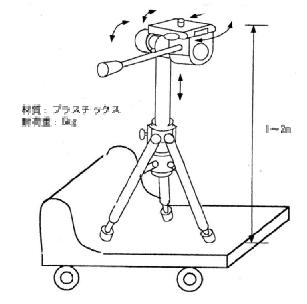

Configurations




Specifications

Movable direction Azimuth and elevation
Rotation step 0.04~10 degrees
Manual correction in azimuth Right and left side, possible
Leveling of input data 1~128
Display It records by an arbitrary frequency. Electric field in each direction and record of strength
Antenna that can be installed 3GHz~10GHz Antenna, Planar antenna that put up attachment tool
Computer Windows XP
