DC-440MHz 90dB Logarithmic Amplifier (Log Amplifier)

Model No. AMP47
Feature

Input signal frequency DC ~ 440MHz, small log amplifier 90dB dynamic range.
Pulse width 30ns High-speed response so you can measure the signal input level or higher.
The +3.3 V ~ +5 V single supply

【Related Contents】
👉Products Line-up of Amplifier

Specification

No. Article Specification Note
1 Frequency range DC~440MHz
2 Input Impedance 50Ω
3 Max input level ±2.2V  +17dBm
4 Min input level -73dBm or less Noise floor
5 Slope 24mV/dB(typ)、22~26mV/dB 10MHz<f<200MHz
6 Output voltage 0.5V @ -73dBm input
2.5V @ +17dBm input
Standard value
7 Output load resistance MIN 100Ω
8 Pulse response It is possible to measure from 30ns. When over 200ns, the output voltage is the same as CW.
9 Power supplyVs +3V~+5.5V 10mA or less
10 RF connector SMA(f)
11 Power connector JST PA connector #1 Vs #2 GND
12 External dimensions H29.5×W29.5×T14.5 mm
H30.5×W46.5×T14.5 mm
Mounting hole 2×φ2mm、H25×W25mm

Without connector
With connector
-

13 Weight 20 g

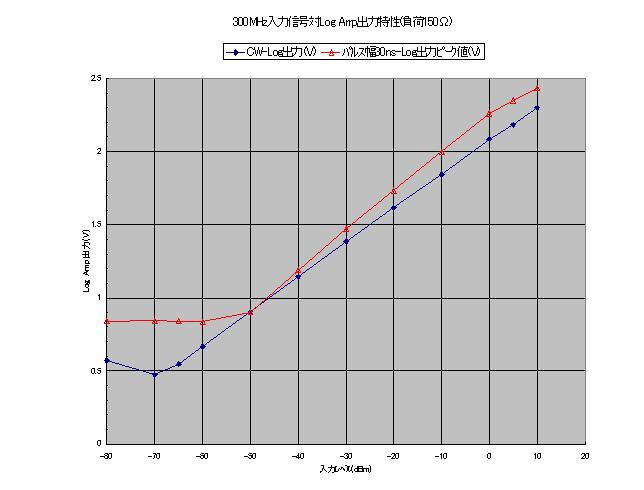

Data Sample
