Specification
| Items | Details |
|---|---|
| Selector switch | 16ch×16ch |
| Frequency | 10MHz~200MHz |
| Control | USB |
| Measuring items | Resonance frequency, Q, resonance frequency reading time of S21 Frequency display:＿＿＿＿＿＿．＿Hz(Δf) Q :＿＿＿＿＿＿．＿ Note 1) The step of capturing the resonance point is set to two steps, the first is large, and then the peak point is enlarged to improve the resonance frequency resolution display to & plusmn; 0.1Hz. The scanning from the second time starts with the resonance frequency of the previous time as the center. Note 2) Number of resonance points: Process up to 2 points. |
| Measurement mode | ModeⅠ:0-0，0-1，0-2，・・・・・・・0-16，1-0 Can be stopped on the way ・The measurement interval can be selected from 1 to 10 seconds. ・The time from signal application to data acquisition can be selected from 0.3 to 10 seconds. ・The interval between the 1st, 2nd, and 3rd times can be selected arbitrarily in 1 second-1 hour. However,the measurement interval is not accurate. Max.10 times ModeⅡ:Entering any number to measure only the one. |
| Calibration | Frequency calibration:Performed using Short, Open, Load Sample calibration:ModeⅠ→Value after subtracting the value of any sample ModeⅡ→Value after subtracting the initial value of each |
| Error indication | Red or 0 |
| Data Storage | Save data in Excel. |

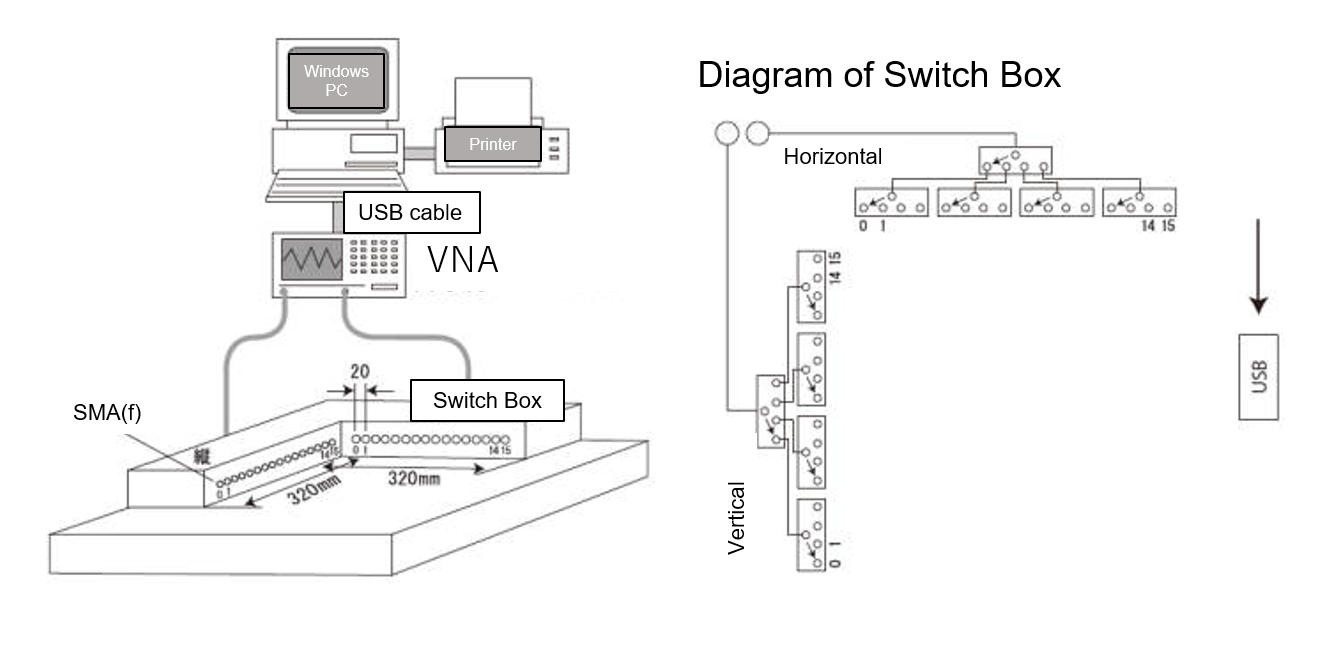

Configuration
 |

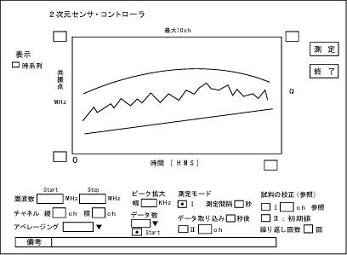

Data Example
Provides visual display in color |
 |
 |
Ordering Information
| Part No. | Details | |
|---|---|---|
| SB16-16-1A | 16×16ch switch box | 1 |
| DMP-62 | Channel switching and display software | 1 |
| CM06A-AA-2000 | Coaxial Cable Assemblies(2m) | 2 |
*Basic capability: Maximum speed in principle :0.2sec/1 point.
*Maximum speed in principle(including processor): 0.5sec/1 point
