Radar Alignment System (RAS) SM5899

Model No. RAT02

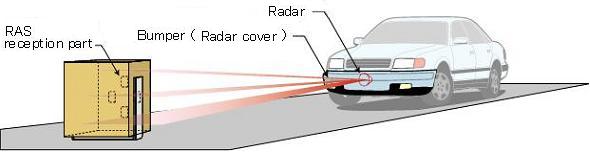

Quick and powerful work bench for alignment of the radar behind the car bumper and
performance of radar cover, including millimeter wave compatible emblams (insertion loss and beam tilt).

The system was upgraded and has become more effctive measurement system(EES01A, FMCW-type), please check here.

We will propose a system appropriate for your needs, please feel free to contact us!

Features



Items Details
Frequency range 76~77GHz
Operating temperature 0°C~40°C
Data update rate 4Hz(250ms/point)
Measurement angle precision ±0.25°
Simultaneous measurement of insertion loss of radar cover and beam tilt Yes

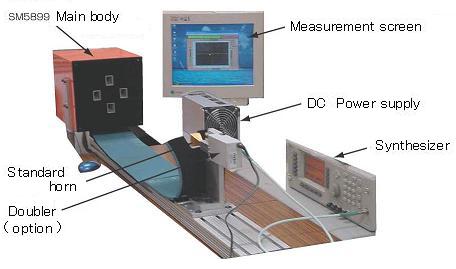

SM5899 System configuration example

System Configuration Example (For evaluation of Radar Cover characteristics)

Part No. Product name Amount
SM5899 Radar alignment system (RAS)
1
DC Power supply ( DC12V, 3A )
1
VGA monitor
1
MG3691C Synthesizer ( 2~10GHz )
1
SM5888 Multiplier
1
RFcable, 2m, SMA Male connector
1
Standard horn antenna ( with fixture )
1
RAS fixture
1
Material fixture
1

・DC power supply of your choice may be available.
・A standard VGA monitor is applicable

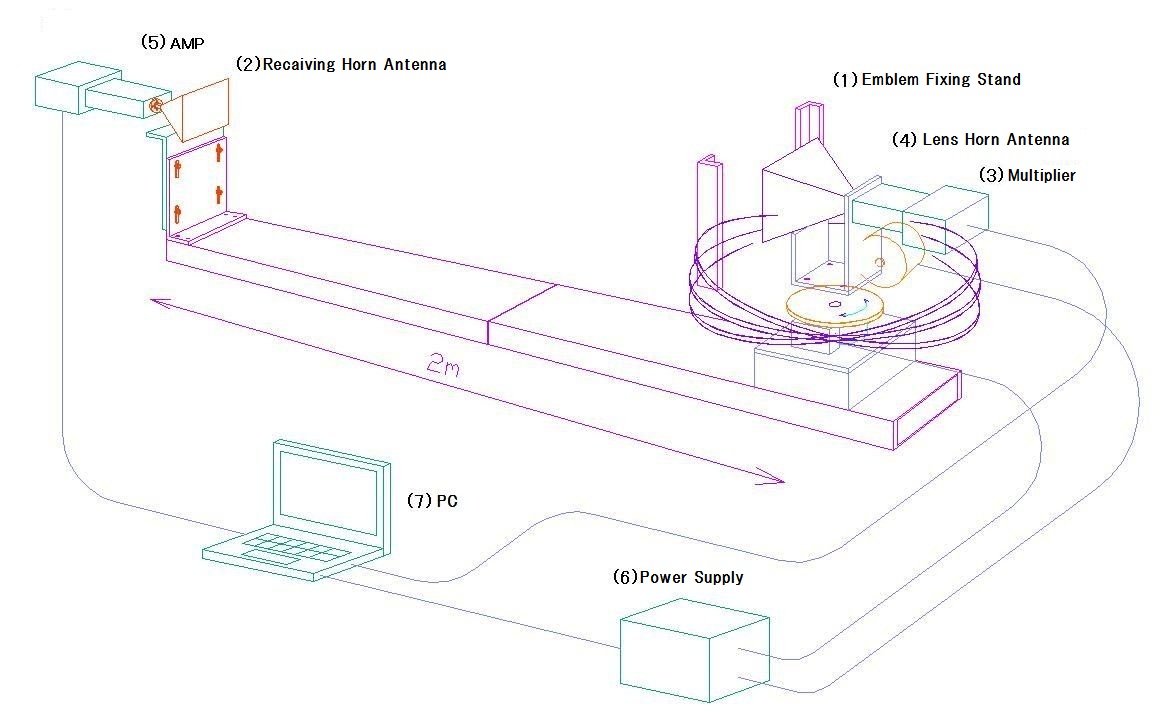

High-spec emblem evaluation system

Items Details
Frequency range 76~77GHz
Operating temperature 0°C~40°C
Data update rate 4Hz(250ms/point)
Measurement angle precision ±0.1°
Simultaneous measurement of insertion loss of radar cover and beam tilt Yes

*Capable of measuring beam half width (-3dB)
*Capable of measuring at multiple frequency points (20 points) simultaneously
