Active Radar Target Simulator for
Collision Avoidance Radar (long range)
Radar Test System - 24GHz, 60GHz, 76.5GHz, 79GHz, 94GHz, 150GHz (RTS)ME7220A

Model No. RAT01

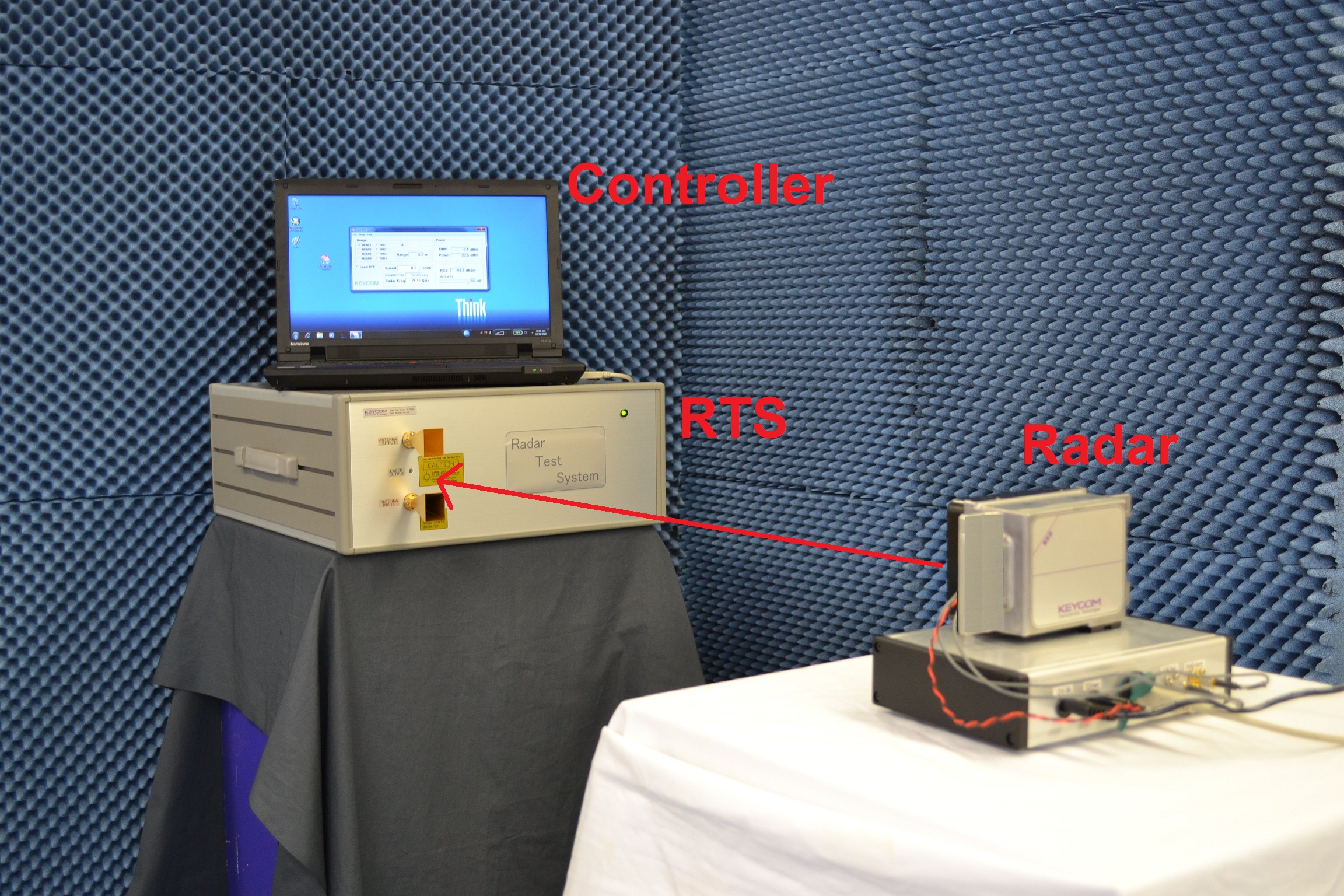

KEYCOM's ME7220A is a multifunctional in-door Radar Test System.

The system allows you to check the performance of radar such as accuracy of detecting distance and speed, through simulating target.

It interfaces with spectrum analyzer and power meter for frequency and power measurements respectively.
[ 2~3GHz for 24GHz and 76.5GHz system, 6~12GHz for 79GHz, 94GHz, 150GHz system ]

Compatible with climate radar[ 90~110GHz, 110~170GHz ]

【Related Contents】

👉 Introduction of KEYCOM's RTS series
  You can grasp the whole picture of our RTS series by checking here.
👉 For Moving Target Simulation
  The distance and Doppler speed can be changed according to your setting, to simulate situations where the target is approaching or moving away.
👉 For Lane Change simulation
  With this moving antenna system(additional to 1.）, you can reproduce horizontal movement of generated targets, to simulate lane changing action of remote vehicles running in front.
👉 For testing LiDAR with Moving target
We've succeeded in developing a LiDAR Test System of Moving target type, which enables more realistic testing by varying the relative distance (5m to 300m).
👉 For imaging RCS of a target(e.g. human or vehicle)

Features

For Research and Development of Radar

You can adjust detecting distance, speed and output indoors in developing process of radar.
Quantification of transmitter, receiver, and antenna performance enables stabilization of radar module characteristics.
Built-in laser allows accurate alignment of radar-under-test to the RTS antennas without additional mechanical fixtures

For Radar Module Manufacturing

By installing the RTS into standard production lines or automated radar test stations, you can perform complete testing of radar modules
You can test all critical radar parameters accurately and repeatedly in a confined and controlled environment
Interfaces with external test accessories including spectrum analyzers and power meters.
You can easily control via external computer or included handheld manual controller.

For Indoor Driving Test

You can verify functions of radar in vehicle test under realistic conditions, such as a car running in front.
You can check radar's performance both of transmitter and receiver.

Specifications

General

Items	Details
Polarization of plane	Horizontal standard (selectable)
Adjusting laser	Class ⅡLaser, 600~700nm, Output power <1mW

Frequency

Model No.	Frequency range	Occupied bandwidth
ME7220A-24G	24 ~ 25GHz	300MHz
ME7220A-24G-11	24 ~ 29GHz	5GHz
ME7220A-60G	60 ~ 64GHz	4GHz
ME7220A-76G	76 ~ 77GHz	1GHz
ME7220A-79G	76 ~ 81GHz	5GHz
ME7220A-94G	94 ± 200MHz	400MHz
ME7220A-150G	50 ± 200MHz	400MHz

Feature

Items	Details
Simulation distance	5m ~ 300m , ⭐4.5km ～ 38km
Target simulation speed	0 ~ ±300km/h
Speed step	1km/h
RCS	50dB, 1dB step

Application note

Application note (English)

Please consult with your KEYCOM representative for specifications of your request.
