Parallel conductor plate type dielectric resonator method　dielectric constant and dielectric loss tangent measurement system

Catalog No. dps14002021001-11
This is high precision measurement equipment for εr　and tanδ of low loss materials in the microwave band.
This is a measurement method provided in the JIS regulations as JIS R 1672

Specifications

Frequency 3~26.5GHz
Dielectric constant 2 or over, Accuracy ±1%
Dielectric loss tangent 10-6 - 10-3 Accuracy ±5%
sample Cylinder d[mmφ]×h[mm]
sample Dimension

Model No.

Name Specifications Model No.
Resonator kit 3GHz-18.5GHz RK-01
18.5GHz-26.5GHz RK-03
For low loss specimen RK-05
Program Parallel conductor board dielectric constant, dielectric loss tangent test program PMP-02
Parallel conductor board dielectric constant, dielectric loss tangent temperature characteristic test program PMP-03
PMP-02,PMP-03 integrated program PMP-04
Standard sample
Calibration semi-rigid coaxial cable kit
　 (common to all resonators)		 40 GHz coaxial cable assembly(1m) 2 sets CM06D-APC2.9(m)APC2.9(m)-1000
Network analyzer When it is not possession, We will arrange.
Please inform us about the model for which you hope.
Windows PC, printer When it is not possession, We will arrange.
GPIB cable   GP-01

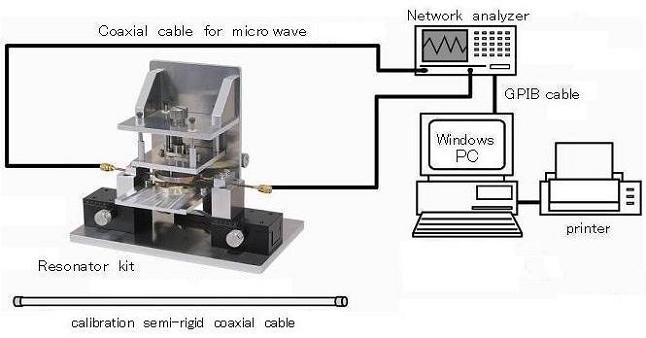

Configurations
